Force analysis of a helical gear involves understanding the various forces acting on helical gear teeth during operation. Here are the key aspects of such an analysis:

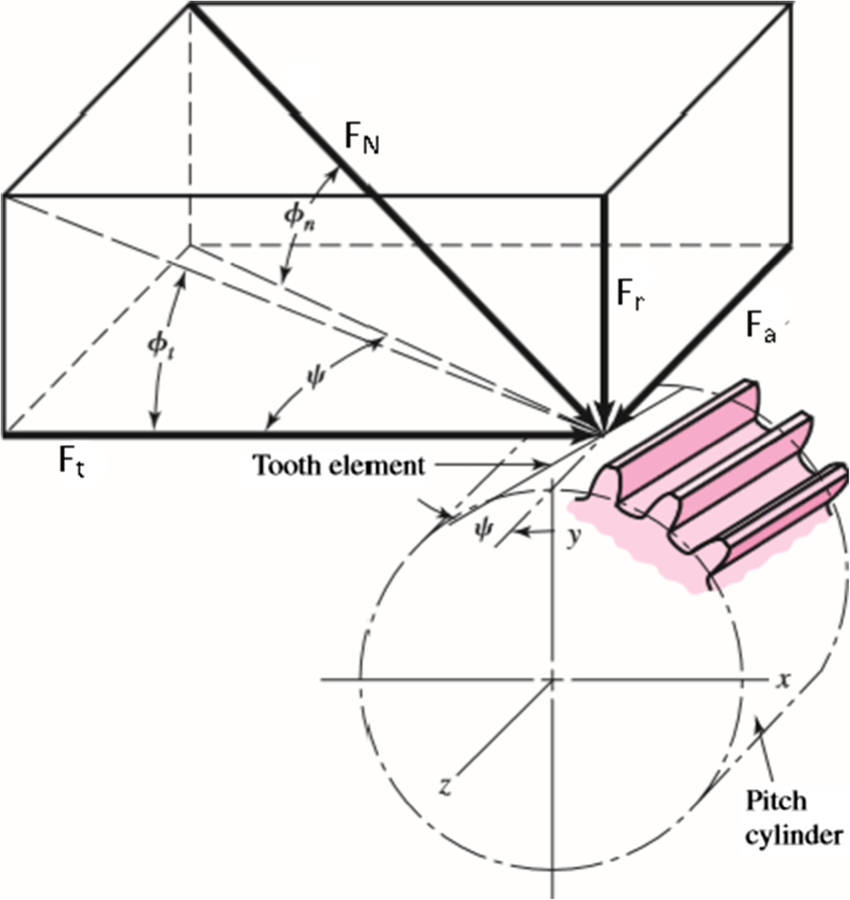

- Normal Force: This is the force that acts perpendicular to the tooth surface. It’s important in helical gear because it is not only larger than in spur gears but also has components due to the helix angle.
- Axial Force: Unlike spur gear, helical gear generate an axial force along the axis of the gear shaft. This is a result of the helix angle of the teeth and needs to be accommodated in the design, particularly in the bearing selection and shaft design.
- Radial Force: This force acts radially outward from the gear center and helps determine the shaft and bearing sizes necessary to support the gear assembly.
- Tangential Force: This is the force that is tangential to the pitch circle and is primarily responsible for transmitting torque through the gear train. It is a critical factor in the sizing and strength analysis of the gear teeth.
- Resultant Force: The resultant gear tooth force is a vector sum of the axial, radial, and tangential forces. The direction and magnitude of this force affect the stress experienced by the gear teeth and the overall gear system.
Analyzing these forces involves:
- Determining the Load Distribution: Analyzing how the load is distributed along the tooth face, which can be uneven due to gear misalignments or deflections in the gear or shaft.
- Stress Analysis: Calculating the stresses in helical gear teeth due to the forces, using formulas or finite element analysis (FEA) to ensure the teeth can withstand the expected loads without failure.
- Life and Reliability Calculations: Estimating the fatigue life of helical gear teeth based on the applied loads and the material properties.
Load Distribution Analysis
In helical gear, the load is not uniformly distributed along the tooth width. This non-uniform distribution is primarily due to the helix angle and gear alignment. The factors influencing load distribution include:
- Helix Angle: Larger helix angles result in a greater proportion of the load being carried axially along the gear face. This can lead to increased axial and radial forces.
- Gear Misalignment: Misalignments due to manufacturing tolerances or assembly errors can cause uneven load distribution, leading to increased stress concentrations at certain points on the gear teeth.
- Elastic Deformations: Under load, gears deform elastically, which can alter the intended contact patterns and load distributions.
Stress Analysis Techniques
To ensure the gear will perform reliably under operational stresses, engineers use several methods to analyze and optimize gear tooth stress:
- Analytical Calculations: Basic stress calculations can be done using Lewis formula or other analytical methods to estimate bending and contact stresses under ideal conditions.
- Finite Element Analysis (FEA): For more accurate and detailed analysis, FEA can be used to simulate the actual stress state in the gear teeth, considering complex factors like material properties, geometry variations, and load conditions.
- ISO/AGMA Standards: Following established standards (such as ISO 6336 for gear calculation or AGMA standards) provides guidelines and formulas for calculating stresses and strengths of gear teeth.
Life and Reliability Estimations
The life expectancy and reliability of helical gear under operational forces are assessed using:
- Fatigue Life Calculations: Based on the calculated or simulated stress cycles, the fatigue life of helical gear can be predicted using S-N curves (stress-number of cycles to failure) for the gear material.
- Safety Factors: Applying appropriate safety factors to account for uncertainties in load conditions, material defects, and unforeseen operational scenarios.
- Lubrication and Wear Analysis: Proper lubrication significantly affects the load carrying capacity and life of gears. Analyzing the lubrication film thickness and wear patterns can help in predicting gear life and optimizing maintenance schedules.
Thermal Analysis
In high-speed or high-load applications, thermal effects due to friction and heat generation can significantly affect the gear performance. Thermal analysis might be necessary to ensure that temperature rise within the gear system does not lead to material degradation or loss of lubricant effectiveness.
Implementation of Findings
The results from the force, stress, and life analyses guide the gear design process, including:
- Material Selection: Choosing materials with appropriate strength, hardness, and toughness.
- Geometry Optimization: Modifying gear tooth profiles, helix angles, and other geometric parameters to improve load distribution and reduce stress concentrations.
- Quality Control: Ensuring high precision in manufacturing to reduce misalignments and deviations that could impact performance.
Understanding these forces and stresses is crucial for designing durable and efficient helical gear, especially in high-power or high-precision applications such as automotive transmissions or industrial machinery. Each of these areas requires careful consideration and integration into the gear design process to ensure optimal performance and reliability of helical gear in their specific applications
